JETvarnish 3D Web 400

100% digital finishing, selective varnish, hot foil stamping & variable data
in a single pass from MGI Digital Technology.
ENG brochure Brochure EN Environment Press MGI Blog

The JETvarnish 3D Web 400 is the latest generation of reel-to-reel digital finishing presses from MGI Digital Technology.

It enables single-pass UV selective varnishing and hot foil stamping, using a 100% digital process, on open or closed substrates, and for offset, flexo, toner or inkjet printing.

Dedicated to the self-adhesive label and flexible cardboard markets, the JETvarnish 3D Web 400 is the best response to brands' need for ever greater reactivity, quality and high added value. It enables converters and printers to reduce their customers' Time to Market, while transforming the impact of their labels and packaging on the shelf, in full compliance with their environmental strategies.
The versatile JETvarnish 3D Web 400 meets the most varied requirements for short, medium and long runs, enhancing basic four-color production with digital varnish and hot foil stamping in fixed or variable data, flat or embossed, facilitating multi-shot and versioning.

High Quality 100% digital

The JETvarnish 3D Web 400 enables inkjet application of UV varnishes, from 7 to 224 microns, for the most beautiful flat or relief renderings, with an unrivalled level of quality and stability, on all types of substrate, open, closed and synthetic. Its on-the-fly registration, controlled by the artificial intelligence of its AIS Scanner, offers perfect, stable registration throughout the print run, whatever the skew, stretch or contraction of the printed web. Hot foil stamping is applied to an inkjet-printed adhesive varnish, using the same methods as for UV varnish, guaranteeing a high level of quality.

Productivity, responsiveness and speed of implementation

Equipped with one or two MGI inkjet engines, the JETvarnish 3D Web 400 applies UV varnish and hot foil stamping in a single pass, at up to 50m / minute. Its on-the-fly makeready system makes it easy to run back-to-back prints one after the other. Its automatic cleaning system takes just 10 minutes a day, so you can concentrate on production.

Scalable 100% solution

Totally upgradeable, the JETvarnish 3D Web 400 is made up of modules that enable printers and converters to easily upgrade it as their finishing business grows. The JETvarnish 3D Web 400 is available in 4 configurations - with one or two inkjet engines and with or without hot foil unit - to suit all needs and budgets.

Ease of use, predictive maintenance, cost calculation and BàT in augmented reality

Controlled by a simple, intuitive interface that can be replicated on a digital tablet, the JETvarnish 3D Web 400 enables any operator to perform complex finishing operations that are impossible to achieve with conventional technologies. Its MGI Connect software suite integrates cost calculation, MGI Dashboard predictive maintenance, and MGI Approve augmented reality remote BàT for prime contractors. Hosted in a secure Cloud, MGI Connect can be deployed immediately, both within the print shop and with its customers.

No screens, no plates

100% digital, the JETvarnish 3D Web 400 applies UV selective varnish and hot foil stamping without the need for single-use plates, screens, plates and consumables, thanks to its inkjet technology.

Low-migration, desencrability and respect for the environment

The digital 100% process of the JETvarnish 3D Web 400 eliminates conventional intermediate consumables (plates, plates and screens) and solvents, which are particularly polluting and generate subcontracting, transport and packaging waste.
Its small footprint and low power consumption immediately reduce CO2 emissions. Its automatic on-the-fly setting eliminates waste, optimizing raw material consumption. Available in a low-migration(*) version, according to the SQTS standard for indirect food contact, and de-inkable on certain substrates according to Ingede 11, the only reference standard on the market, the JETvarnish 3D Web 400's UV varnish AND MGI hot foil stamping combine finishing with respect for the environment.

General characteristics
Print speed
  • Up to 42m/mn(1) (depending on the application)
Supported widths
  • From 100mm up to 420mm (optional)
Tracking
  • The JETvarnish 3D Web 400 is equipped with the revolutionary AIS SmartScanner, an Artificial Intelligence-controlled, on-the-fly registration system, which scans each application and corrects varnish and gilding application according to any deformations in the substrate. With this automated on-the-fly registration process, the operator is freed from time-consuming set-up work.
Optional inkjet motor
  • Inkjet print engine using MGI's inkjet technology for the application of UV selective varnish, which does not adhere to hot foil stamping. This optional module enables varnish + foil stamping in a single pass.

Substrates

  • From 50 to 400 microns (μm)(2)
  • Coated, uncoated and textured paper, film or labels
  • Adhesive labels
  • White or transparent synthetics, PP, PE, POPP, PET
  • Flexible cardboard
  • Shrink film: PVC, PETG
Unwinder
  • max. outer diameter 850 mm
  • 76 mm (3 inch) pneumatic chuck
  • weight capacity 120 kg max
Rewinder

Servo-driven rewinding unit:

  • Max. outer diameter 850 mm
  • 76 mm (3 inch) pneumatic chuck
  • Max. supported weight 120 kg
UV selective varnish and embossing module
General
  • This station uses MGI inkjet technology for the production of UV selective varnish. A simple grayscale TIF file, designed by the prepress department, determines both the area to be coated and the different thicknesses of coating to be applied to each label. This 100% digital process eliminates screen printing screens.
Varnish and drying
  • Varnish thicknesses: from 7(2) up to 116(2) μm (for flat (2D) or 3D effects) for the main or optional engine.
  • In-line drying: The module is equipped with a UV dryer and chill roll for optimal substrate temperature control. The drying cycle includes a roll advance and rewind function to perfectly dry each label and produce a perfect quality while running jobs without waste.
  • High gloss varnish 99 GU.
Digital hot stamping module
General
  • The hot foil stamping module brings a very high added value to all your labels. A simple TIF file, designed by the prepress department, determines the surface that will receive the foil for each label. This 100% digital process eliminates clichés. This module can be disabled at any time.
Stamping coils

The hot stamping films are delivered in reels:

  • Film from 100 to 420mm width,
  • Two chucks available: 76mm (3 inches) and 25,4mm (1 inch)
  • Length of 400 to 2,000 meters of gilding film.
  • Up to 3 stamping reels on the same web.
Other options
Corona treatment
  • In-line system designed to optimize coating adhesion on complex printed substrates.
Variable data WTP
  • Management and modification of files on the workstation
  • Complete variable data (text, graphic, image) for selective varnishing and gilding areas
  • Integrated barcode reader (1D / 2D) Optional Raster Image Processor (RIP)
Dimensions
  • Up to 11.85(3) x 1,58 x 1,81m
  • Required clearances: 1 meter on all 4 sides
  • Weight: ± 4.447kg
Extended Compatibility

Compatible with all web-to-web printing technologies: digital offset and flexographic presses. Compatibility list of printing presses:

  • Narrow web printing presses
  • Digital: Konica Minolta Accurio Label, HP Indigo WS4500, HP Indigo WS6800, Epson, Xeikon, EFI, Durst, etc.
  • Offset: all manufacturers and technologies: UV, H2O or waterless
  • Flexo: all manufacturers and technologies: UV or water based

(1) the speed varies according to the parameters used
(2) contact MGI to check the compatibility of your substrates
(3) depending on the chosen configuration

ADDRESSED CONTRACT

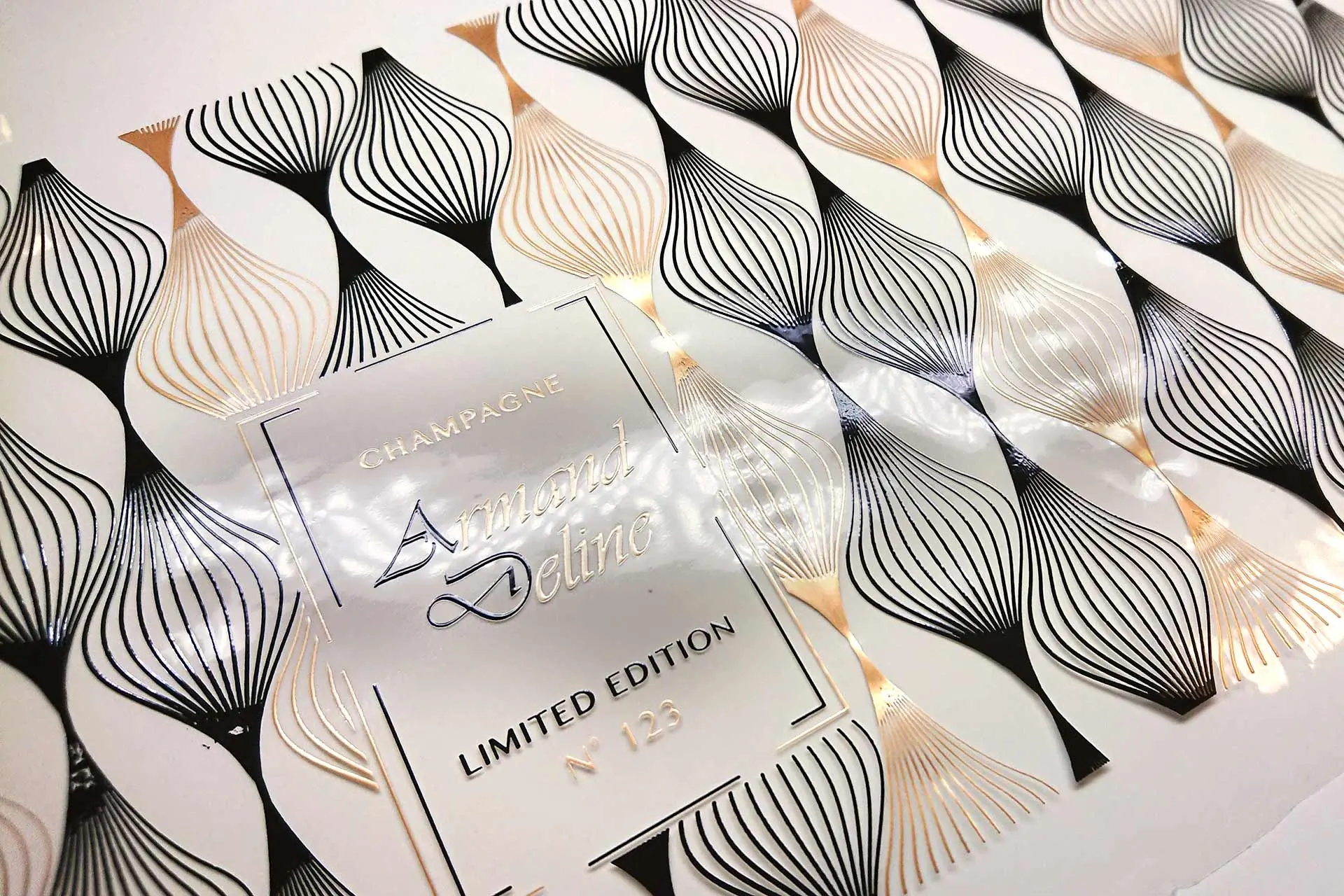

EXAMPLE OF REALIZATION
